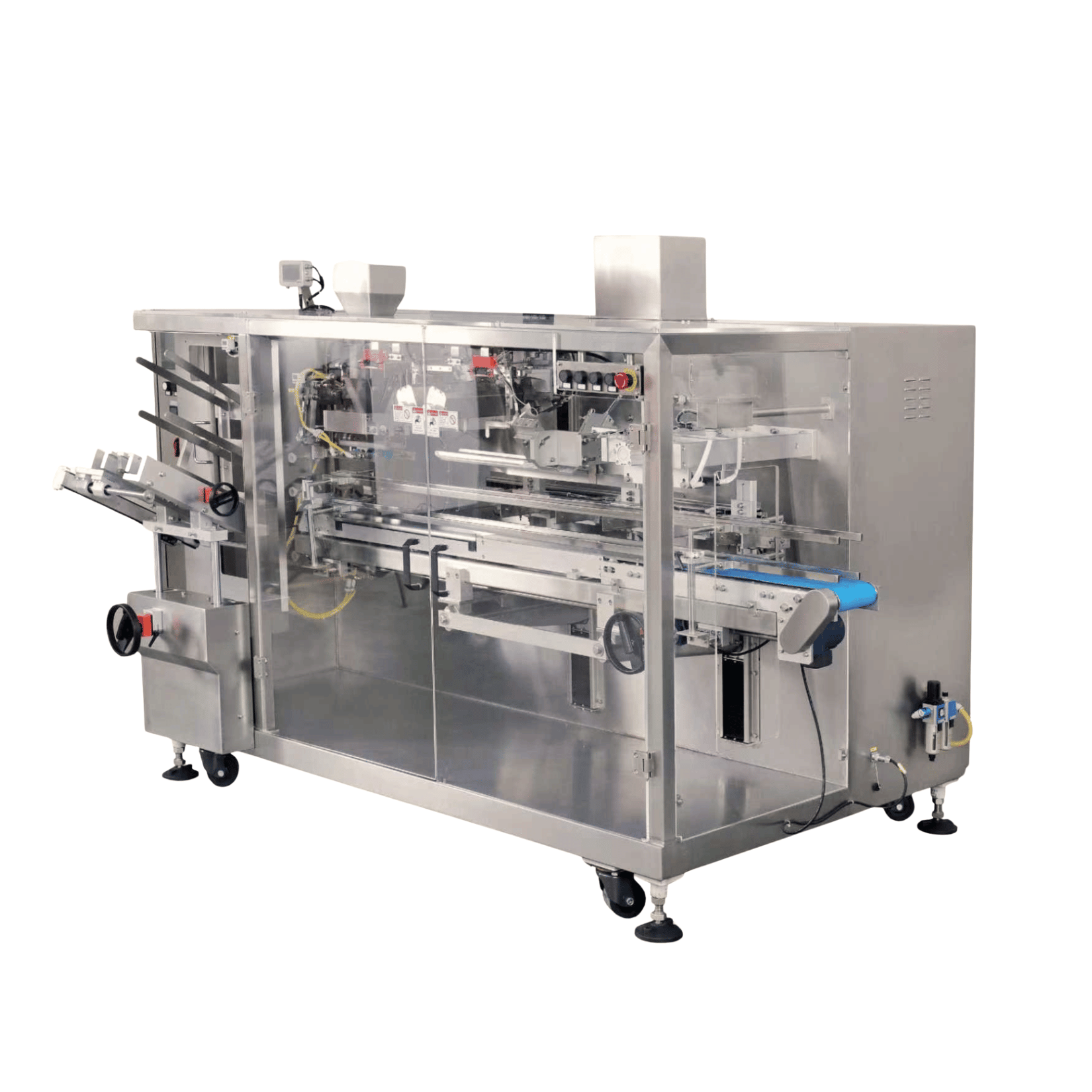

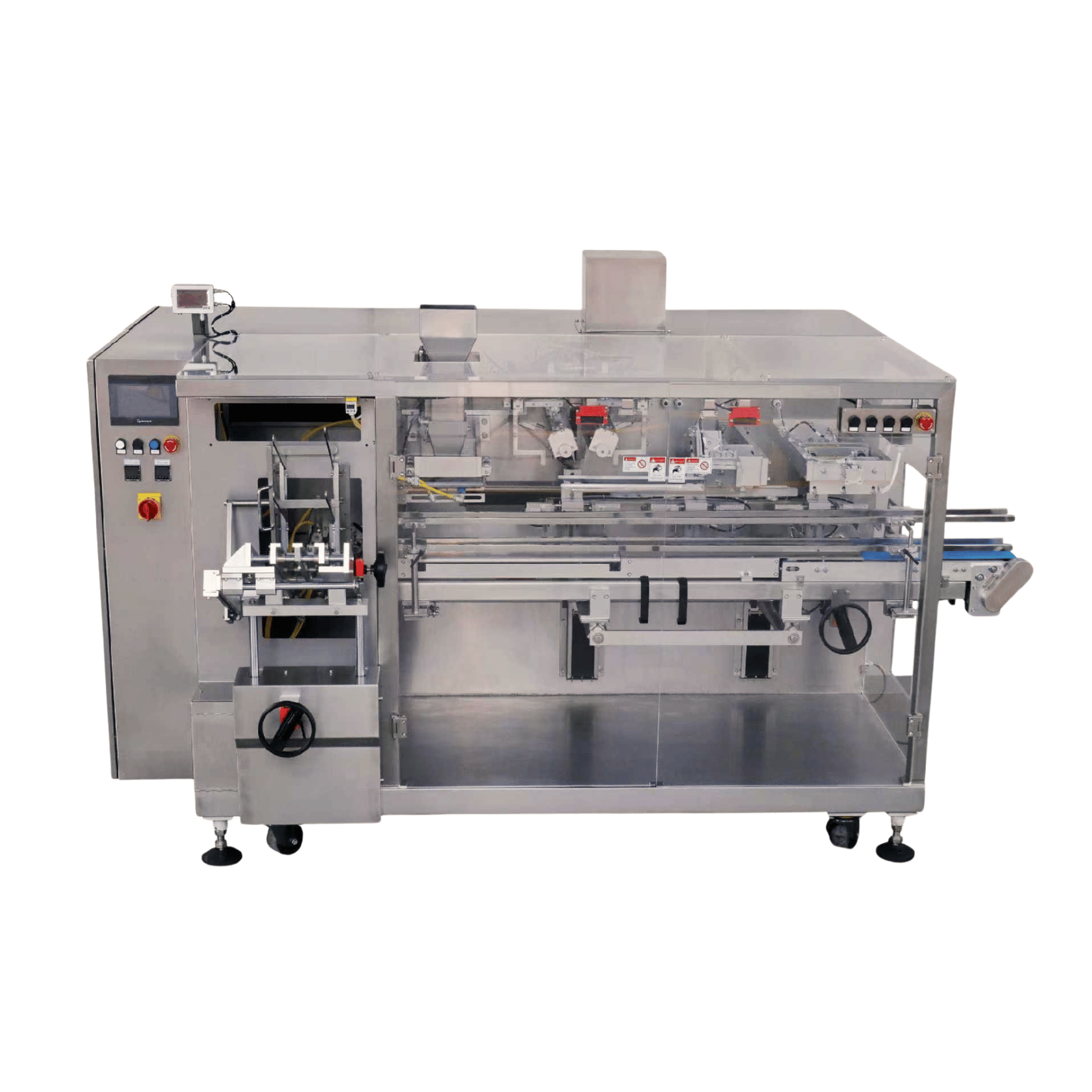

Preformed pouch packing machine – RPL-SG
The RPL-SG machine is specifically designed to handle gusseted bags such as block bottom (quad seal) and Stabilo bags. Its innovative technology for opening and closing the bags ensures reliable and efficient operation.
The machine is capable of achieving speeds of up to 25 bags per minute.
Bag types
Packaging Options
Products types
Technical Info
| Model | RPL-SG |
| Packing type | Ready bags / Doypacks |
| Maximum speed | 25/min |
| Bag width | 80 -200mm |
| Bag depth | 50-100mm |
| Bag length | 220- 400mm |
| Filling range | 5-2500gr |
| pouch material | PA/PE, PET/PE, AL etc. |
| Power requirement | 400V, 50-60Hz, 3kW |
| Air consumption | 0.5m3/min, 0.65Mpa |
| Dimensions | 1750 x 600 x 1294mm |
| Machine weight | 550kg |
