Compack 14-400

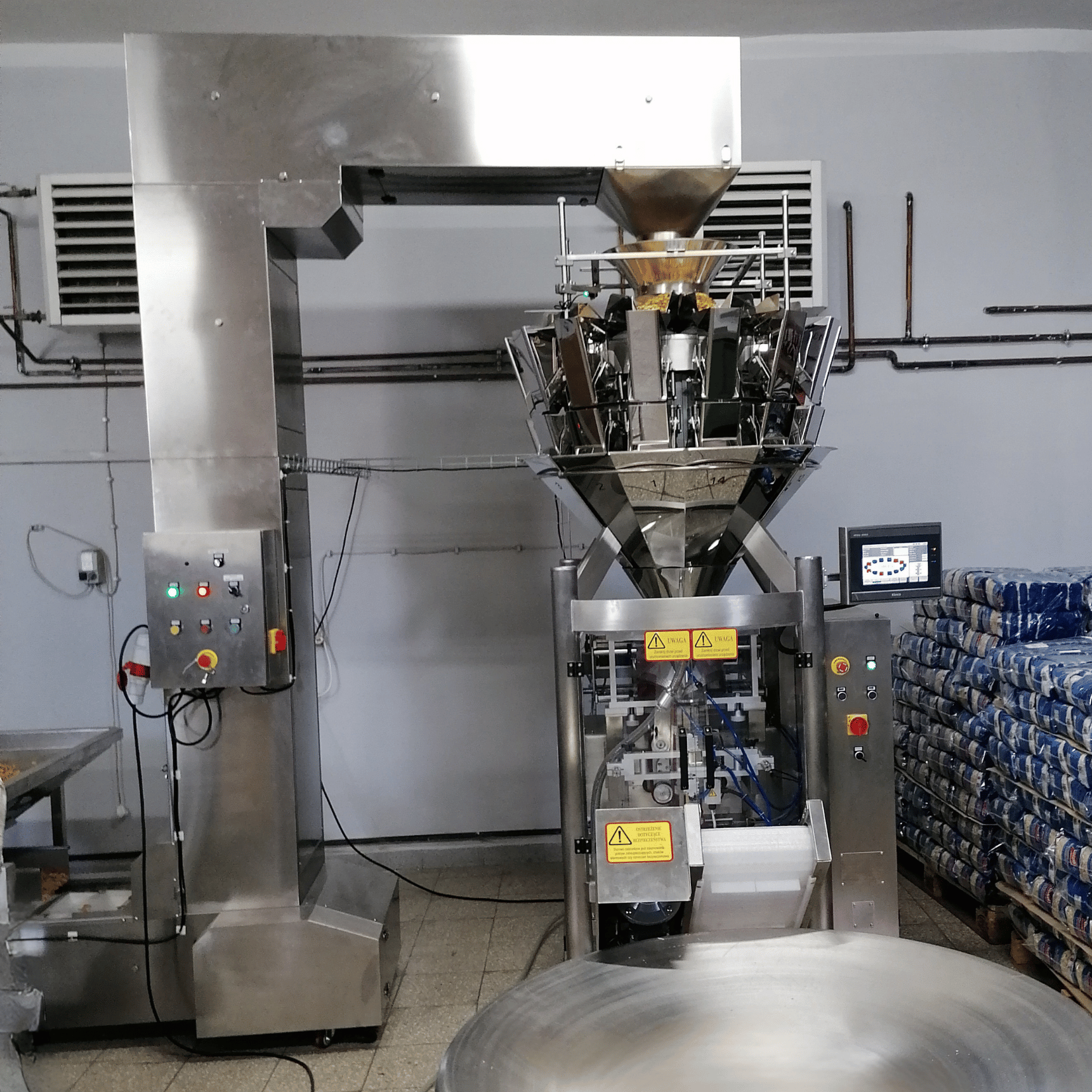

Fast and accurate packaging? The packaging machine combined with a 14-head multihead weigher, forming the Compack 14-500 system, is the ideal solution.
The packaging machine is equipped with a full servo drive system for both the film feed belts and the sealing jaws. A single intuitive touchscreen allows the operator to quickly set and adjust machine parameters.
The machine can be additionally equipped with a thermal transfer printer or a labeling system. For wet products (such as vegetables and fruits) as well as sticky products (such as sweets or meat snacks), the multihead weigher can be fitted with dimpled plates.
The precise weighing and high dosing speed of the multihead weigher, combined with the accuracy of the packaging machine, ensure high overall performance of the Compack system.
The Compack 14-500 packaging machine with a 14-head multihead weigher is dedicated to small packaging formats and products such as dragees, nuts, dried fruits, and similar items.
Bag types
Packaging Options
Products types
| Nr of heads | 14 |
| Maximum speed | 80min |
| Bucket volume | 1000ml |
| Single weighing range | 10-500gr |
| Bag width | 60-240mm |
| Bag length | 50-300mm |
| Reel width | 500mm |
| Accuracy | 0.5-2gr / 0.5-2gr |
| Power requirements | 220V / 5kW / 50-60Hz / 10A |
| Air consumption | 0.3cbm / 0.6Mpa |
| Dimensions | 15400x1290x2300mm |
| Machine weight | 600kg |
