Automesh (Plus)
Automesh (Plus)

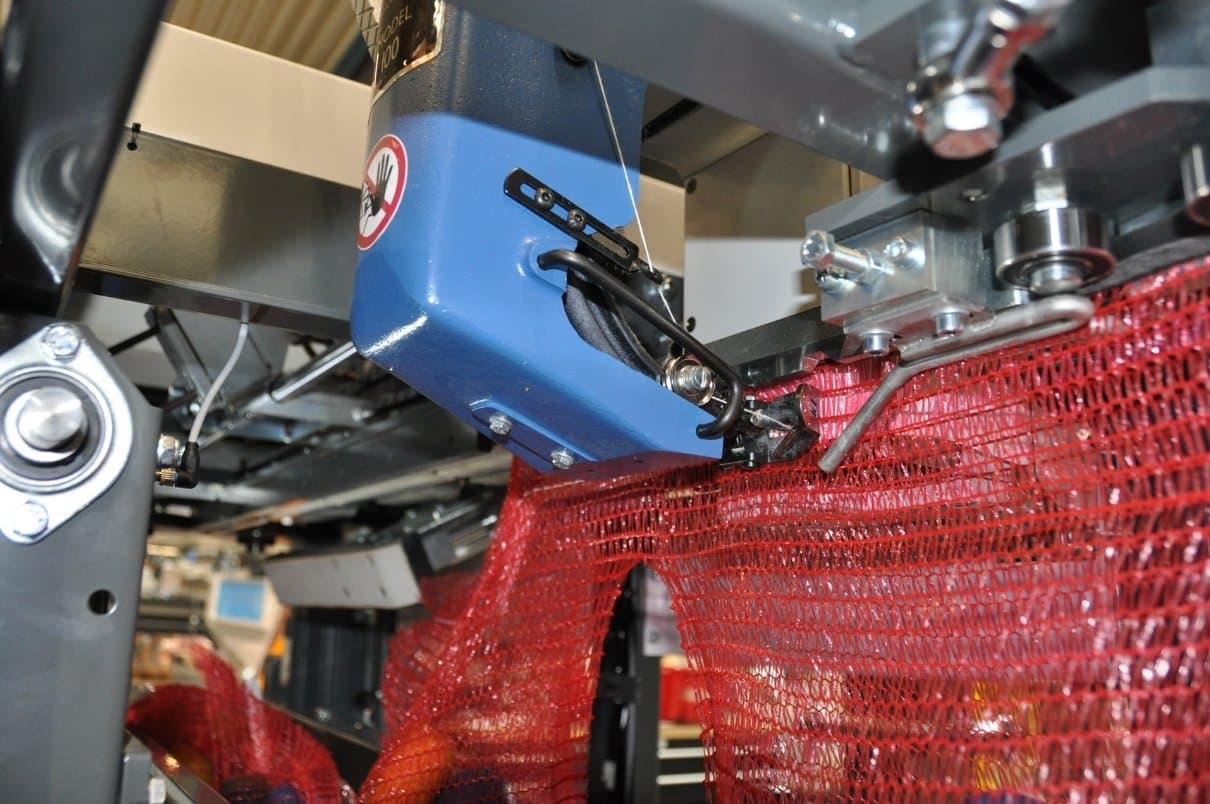

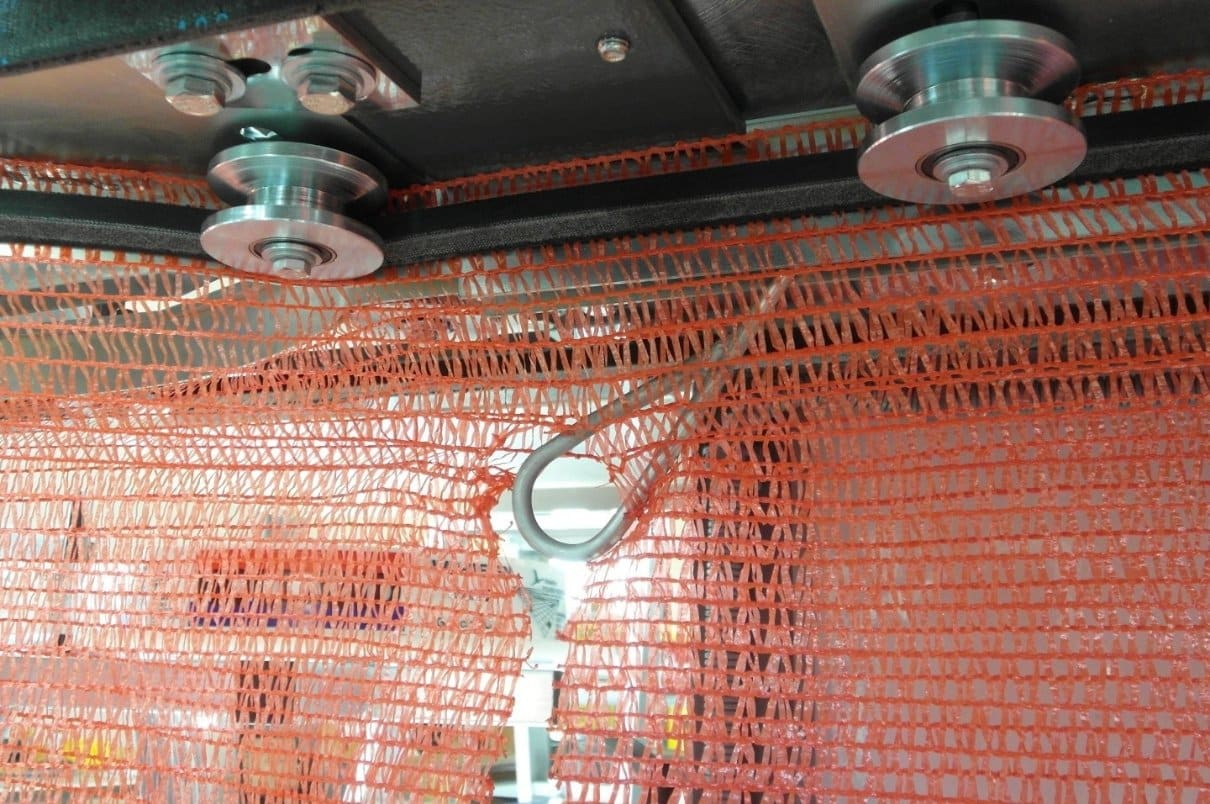

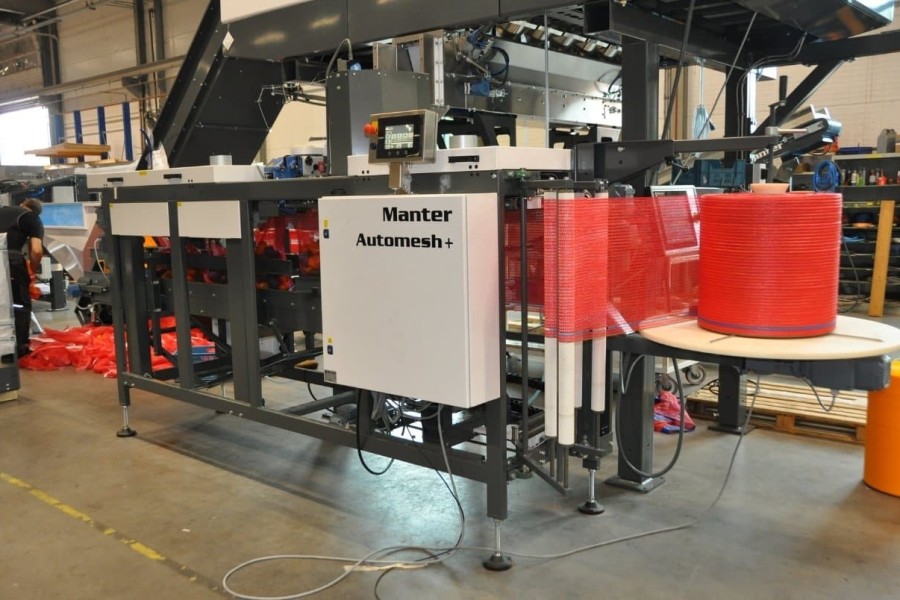

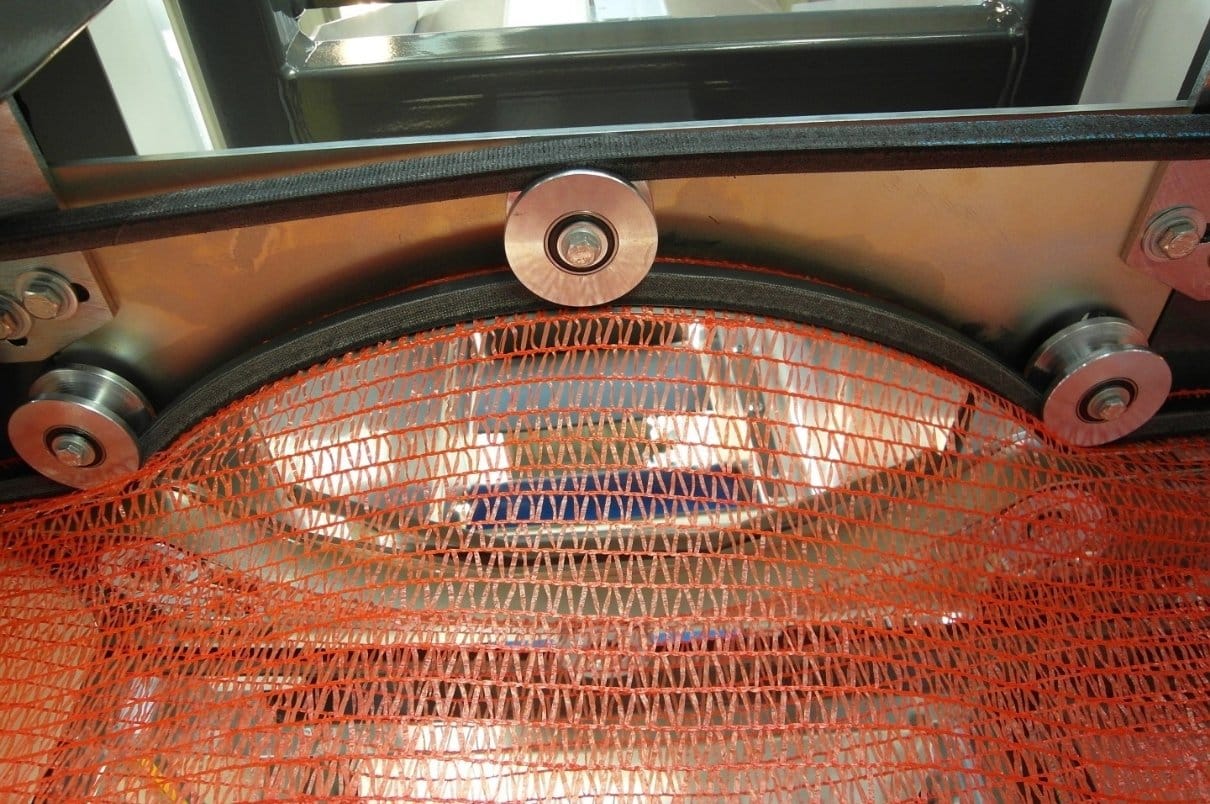

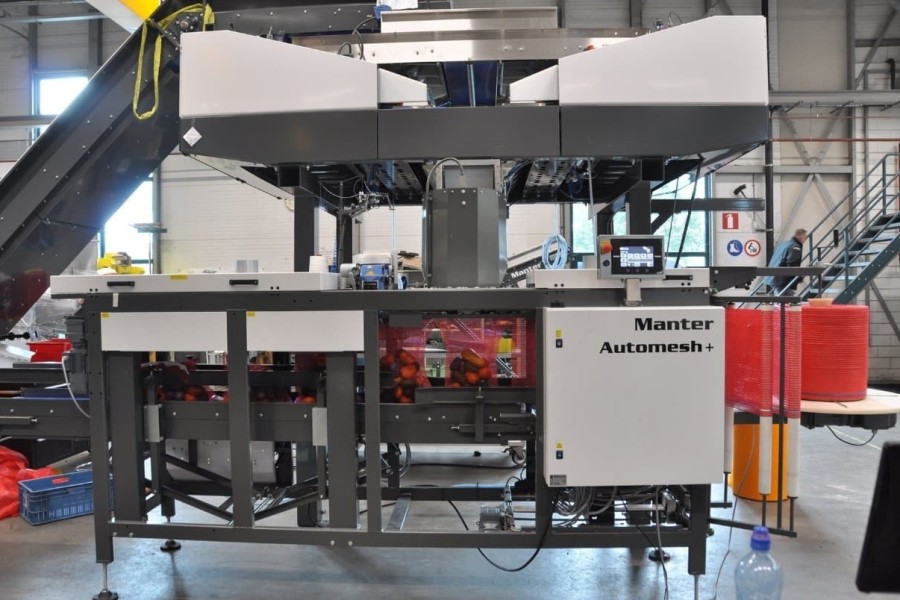

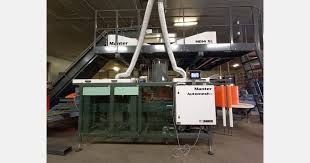

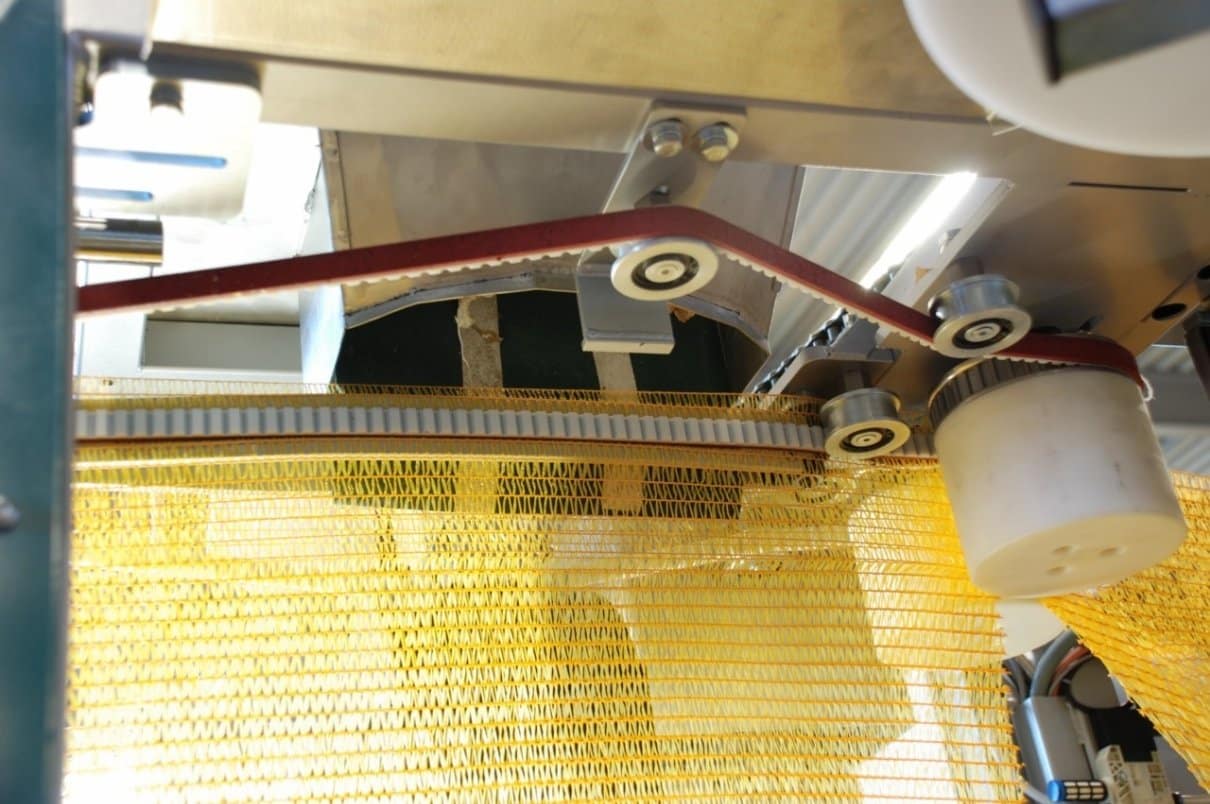

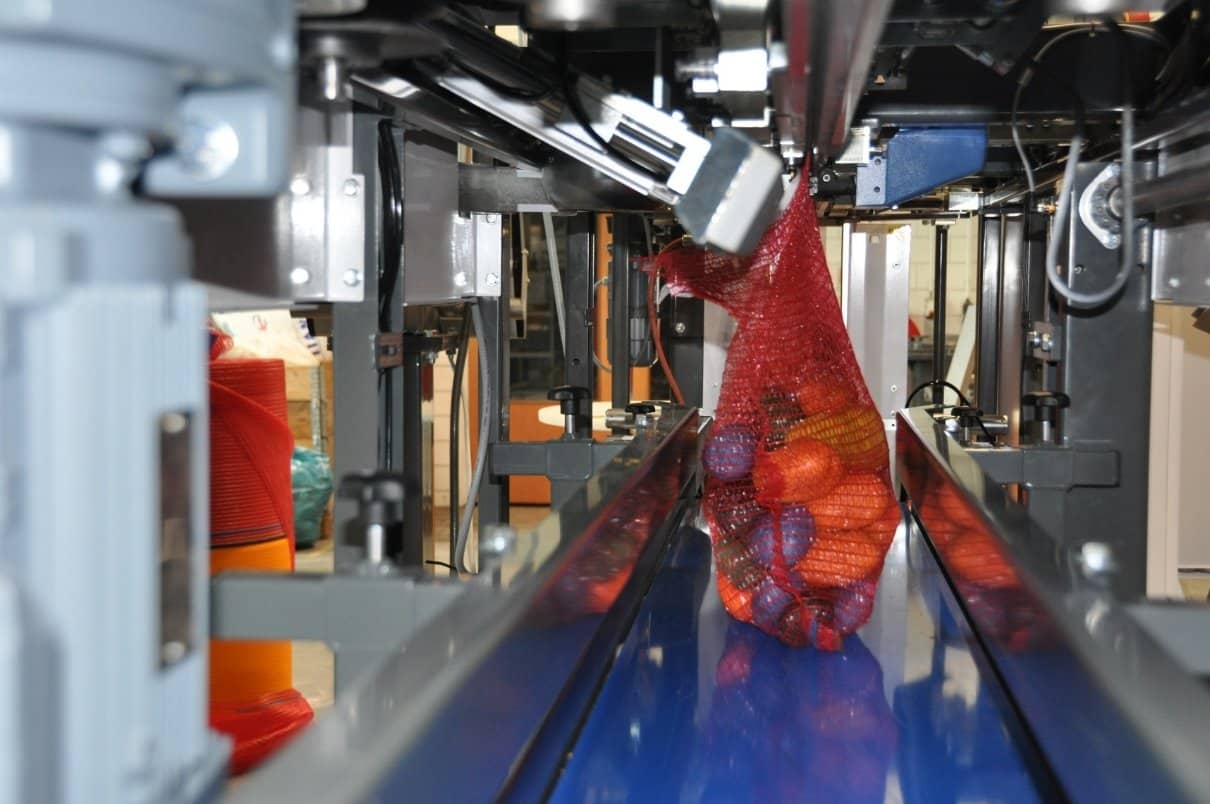

The AutoMesh+ is a fully automatic bagging machine developed for net-style bagging formed from roll stock. The bags are formed and separated using a vertical heating element that welds the mesh to create strong bag edges. Produce flows through the adjustable filling hole and into the bag that is carried on the support belt. The AutoMesh+ is a user-friendly upgrade that automates changeovers. The bag spool, heat seal bar, support belt and hot hand are all programmable and tailored to individual recipes. This translates into fast changeovers and minimizes downtime.
Technical Info
| Model | Automesh (plus) |
| Bag width | 350 - 600mm |
| Bag length | 420 - 800mm |
| Max speed | 24/min |
| Bag weight | 2.5 - 25kg |
| Weighing range | 2.5-15kg / 0.25 - 5kg |
| IP level | IP54 |
| Machine dimensions | 400V / 5.5kW / 50-60Hz |
| Air consumption | 6bar - 150L |
| Machine dimensions | 5280 x 1674 x 2212mm |
| Machine weight | 1000kg |
